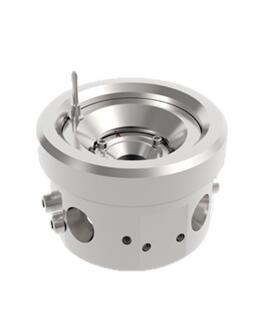

Product name：Diacell® Bragg-(G)/ Plus
brand：Almax-easylab
Place of Origin：UK
The Diacell® Bragg-(G) is the ideal DAC for X-ray experiments. The Diacell® Bragg-(G) Plus, which uses conical Boehler-Almax anvils, makes this cell the true benchmark for high pressure X- ray studies ; The large angle apertures enable diffraction work with high transmission factor and very low background; The Diacell® Bragg-(G) Plus also lends itself to optical experiments at high pressures; Being a gas membrane driven means that pressure within either cell can be changed whilst the sample is mounted on the X-ray stage, saving considerable time; Maximum pressures of up to above 100 GPa may be obtained with the Diacell® Bragg-(G) and the Diacell® Bragg-(G) Plus.
¨ The Diacell® Bragg-(G) is the ideal DAC for X-ray experiments. The Diacell® Bragg-(G) Plus, which uses conical Boehler-Almax anvils, makes this cell the true benchmark for high pressure X- ray studies ;
¨ The large angle apertures enable diffraction work with high transmission factor and very low background;
¨ The Diacell® Bragg-(G) Plus also lends itself to optical experiments at high pressures;
¨ Being a gas membrane driven means that pressure within either cell can be changed whilst the sample is mounted on the X-ray stage, saving considerable time;
¨ Maximum pressures of up to above 100 GPa may be obtained with the Diacell® Bragg-(G) and the Diacell® Bragg-(G) Plus.
